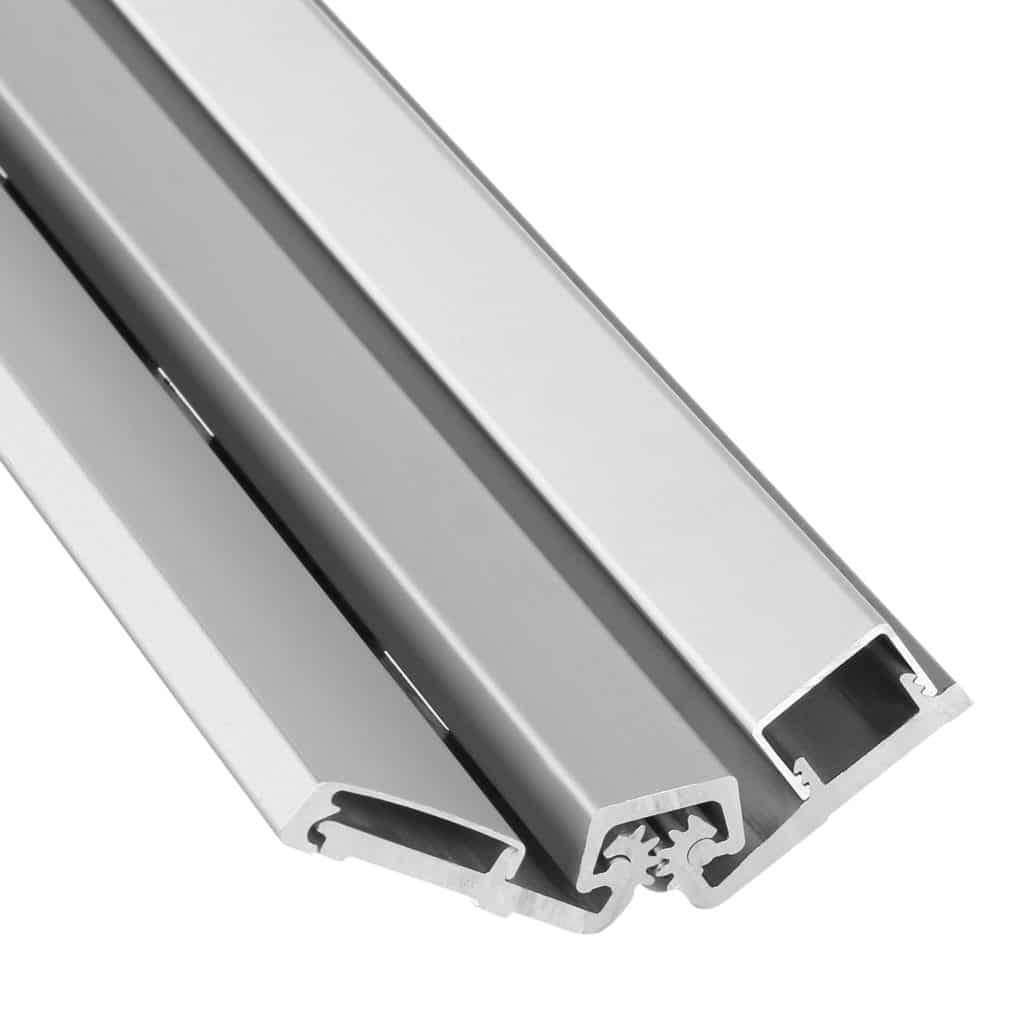

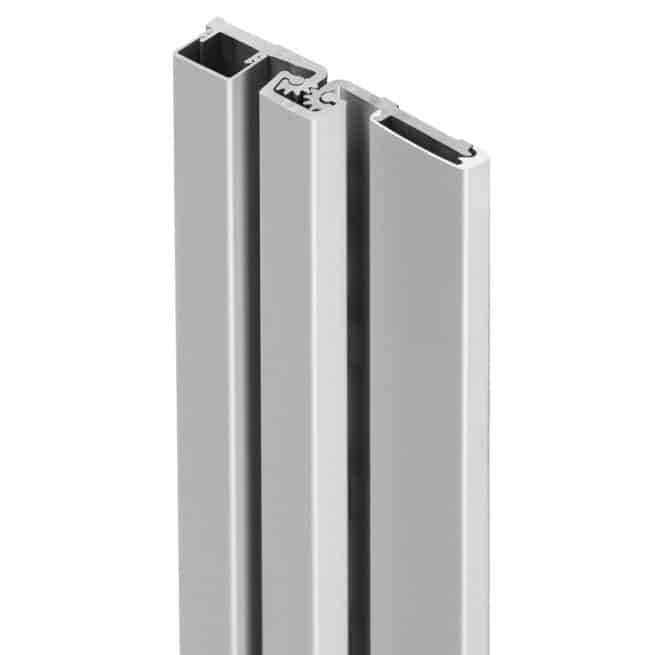

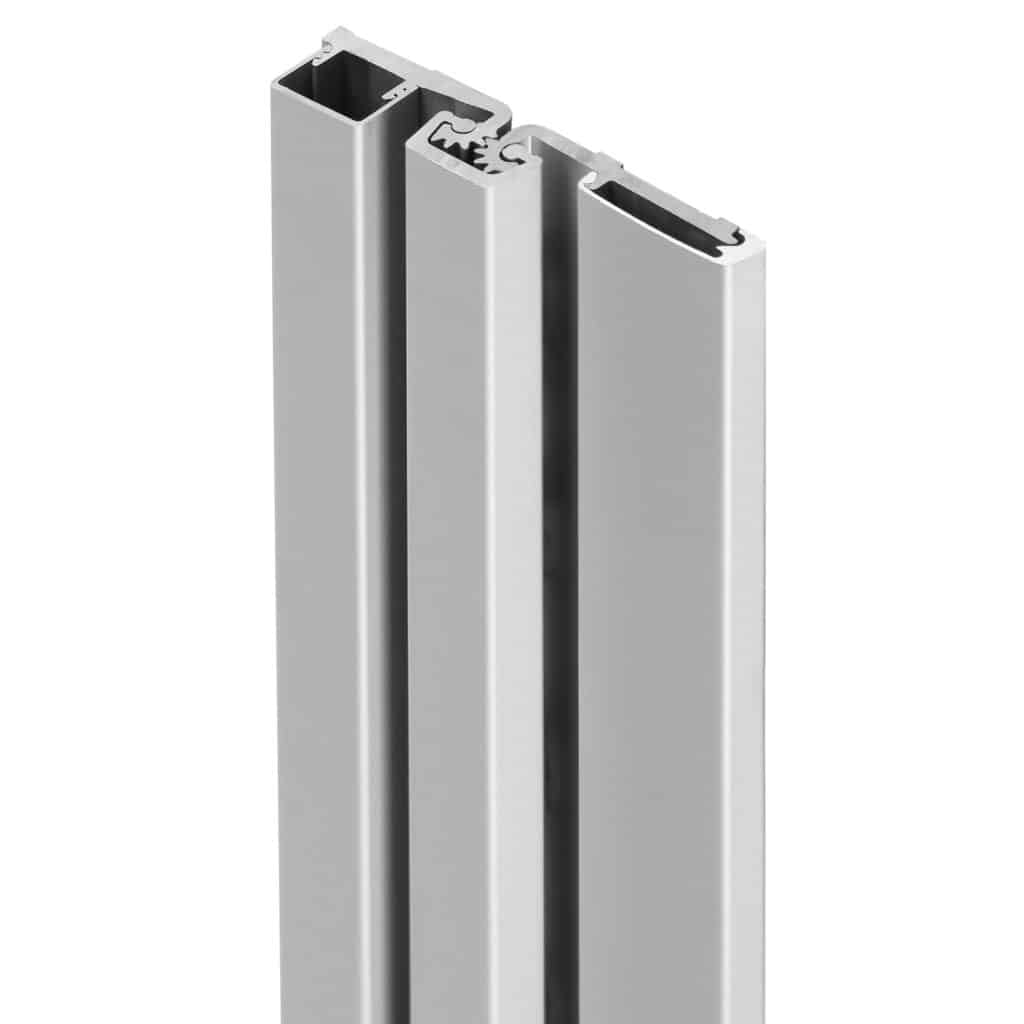

Heavy Duty Continuous Geared Hinge, Full Surface Aluminum
Center Pivot, 83 inch, Anodized, Tamperproof and great for repairing Storefront doors, Compare to Select SL57 Heavy Duty
$295.98
Product Summary
- Heavy duty, continuous hinge for high-traffic doors needing tamper-proof security
- Long-term dependable performance. Lengthens life of frame and door by 400%
- Gear teeth smoothly interlock along the entire length of the hinge
- Fits full length of door to evenly distribute its weight
- Length: 6’ 8” for 7 ft doors. (Contact us for: 7’2”, 8’ and 10')
- Up to 200 lbs. (high frequency doors) or 400 lbs. (medium frequency)

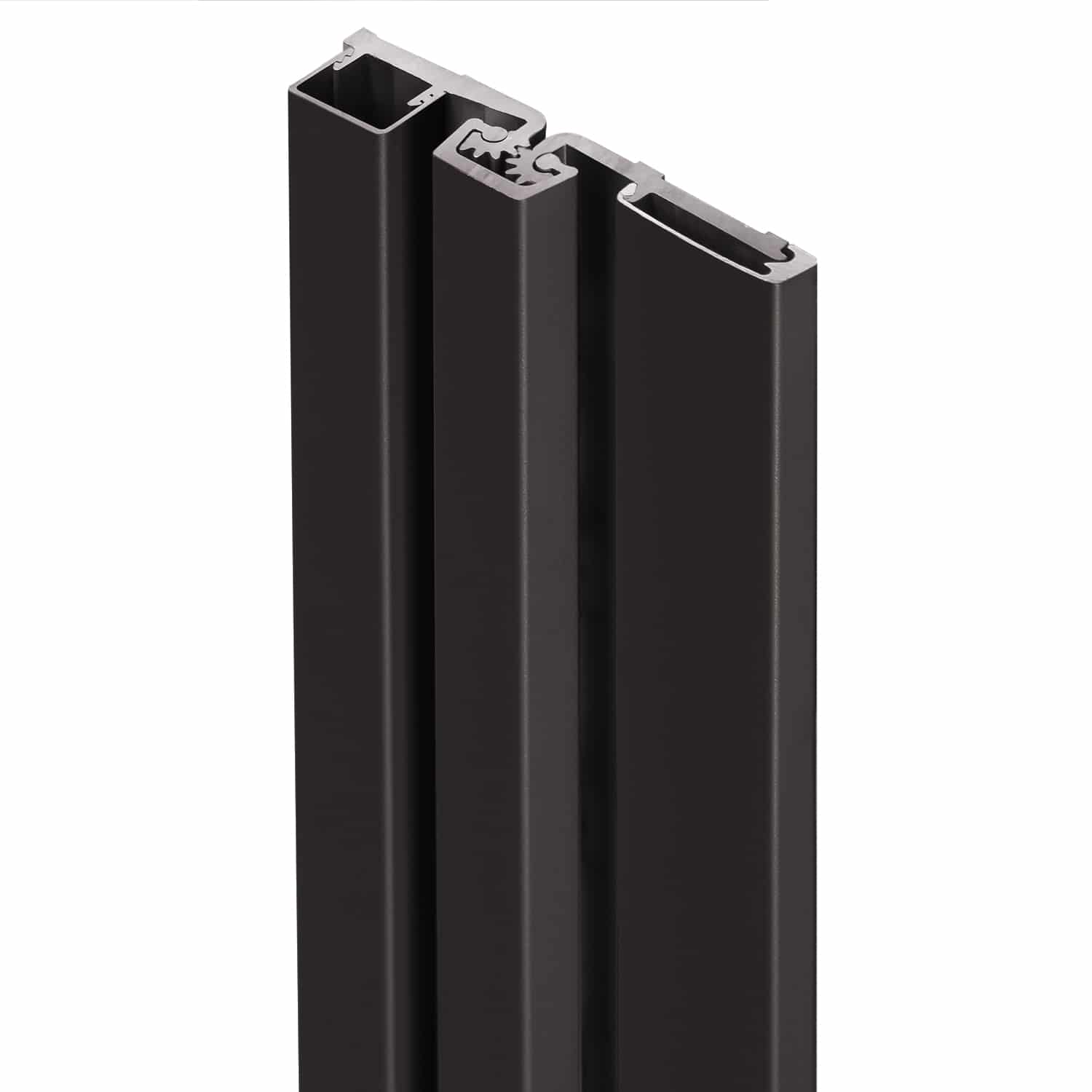

- Anodized Aluminum hinge. Available finishes: Clear Aluminum or Duronotic Bronze
- Fire Rated ULC up to 90 minutes. 20 year warranty
Description
Features
- Fits the full length of standard 7’ commercial doors to evenly distribute its weight. Can be cut and customized for any door
- Fasteners are covered by an architectural cap which cannot be removed by vandalism or abuse, providing complete security.
- Fire Rated ULC up to 90 minutes
- Available finishes: clear aluminum or duronotic bronze anodized
- Available in 83” for standard 7’ (84”) doors. (Contact us for lengths of 7’2”, 8’ or 10’).
- Made from Extruded Architectural Aluminum and is anodized to resist corrosion, ensuring an attractive appearance for the life of the hinge
Mounting
- For 1-3/4” doors. 48” maximum door width
- Can be used with any standard frame without hinge preps
- Mounts on face of door stile and face of frame/side jamb so entire hinge is visible when door is closed
- The frame face must have a flat surface at least 7/8” (22mm) wide
- Hinges are shorter than the door height to avoid threshold or carpet clearance problems
- Clearance required between the hinge edge of the door and the frame must be 1/32” (0.8mm)
- Mounting hardware included
Where can I use this
- Designed for high traffic doors that require tamper-proof hinges, such as storefronts and entrances to offices, hospitals, places of worship, schools, hotels, and other commercial spaces
- Door Weight. Up to 200 lbs. (high frequency doors) or 400 lbs. (medium frequency doors)
- Designed for new construction or retrofitting and repairing doors
SHIPPING & RETURNS
Our Promise: We offer a 100% Satisfaction Guarantee and 30-day Return Policy on all our products. Should you be dissatisfied for any reason, kindly meet the conditions below, then follow the simple steps to make a return.
Conditions:
Items returned must be accompanied by the original packaging and materials. Items must be in new and unused condition.
Limitation:
The Satisfaction Guarantee does not include claims for missing items or damage in transit (see below). Original shipping costs are not refunded. Customer pays for return shipping in most cases. If we made a mistake, we will pay for return shipping and replacement shipping at no expense to you.
Missing Items or Damage in Transit:
Claims of a lost or broken product (such as during transit) must be made within three business days of receipt of goods. This allows us to work with mail carriers to resolve the problem for you.
Need to return something?
Follow the steps on our return policy page to make a return
F.A.Q
Estimated Delivery Maps:
UPS Ground | FedEx Ground | USPS Priority
Expedited options at checkout!
What is “Same-Day Shipping”?
Other hardware outlets ship your order after several weeks.
On HomebuildersHardware.com, products marked as “Same-Day Shipping” ship out of our New York warehouse the same day you order it! If ordered after business hours, it typically ships the next business day.
Products not labeled as “Same-Day Shipping” ship in approximately 7 business days.
Do you offer free shipping?
Yes. Orders totalling more than $250 get free ground shipping.
Can I use “Signature Verified Delivery?”
Yes, and it’s free! We pay for signature-verified delivery on all your orders. You may opt out of this during checkout.
Is there an option for expedited shipping?
Certainly! Plus, HomebuildersHardware.com gives you discounted expedited shipping with FedEx. Shipping via UPS is also available.
Are there bulk discounts?
Yes! Apply for our Pro Pricing to get bulk discounts.
Compare Similar Items:
Product Description
Features
- Fits the full length of standard 7’ commercial doors to evenly distribute its weight. Can be cut and customized for any door
- Fasteners are covered by an architectural cap which cannot be removed by vandalism or abuse, providing complete security.
- Fire Rated ULC up to 90 minutes
- Available finishes: clear aluminum or duronotic bronze anodized
- Available in 83” for standard 7’ (84”) doors. (Contact us for lengths of 7’2”, 8’ or 10’).
- Made from Extruded Architectural Aluminum and is anodized to resist corrosion, ensuring an attractive appearance for the life of the hinge
Mounting
- For 1-3/4” doors. 48” maximum door width
- Can be used with any standard frame without hinge preps
- Mounts on face of door stile and face of frame/side jamb so entire hinge is visible when door is closed
- The frame face must have a flat surface at least 7/8” (22mm) wide
- Hinges are shorter than the door height to avoid threshold or carpet clearance problems
- Clearance required between the hinge edge of the door and the frame must be 1/32” (0.8mm)
- Mounting hardware included
